Magnum
Overview
Created for the amenities and ground-care sectors, the Magnum series features a choice of 1.3m and 1.5m working widths and offers excellent manoeuvrability and value.
Capable of cutting material up to 30mm thick, the machines are armed with durable whale-tail flails and are powerful enough to tackle thick vegetation.
Enquire For More Information
features
gallery
available models
Features
- 1.3m and 1.5m working widths
- Three-point linkage (CAT I)
- 540rpm PTO speed
- 30mm cutting capacity
- 16-56mm cutting height
- Slip clutch protection
- 154mm manual offset
- Rear roller height adjustment
gallery

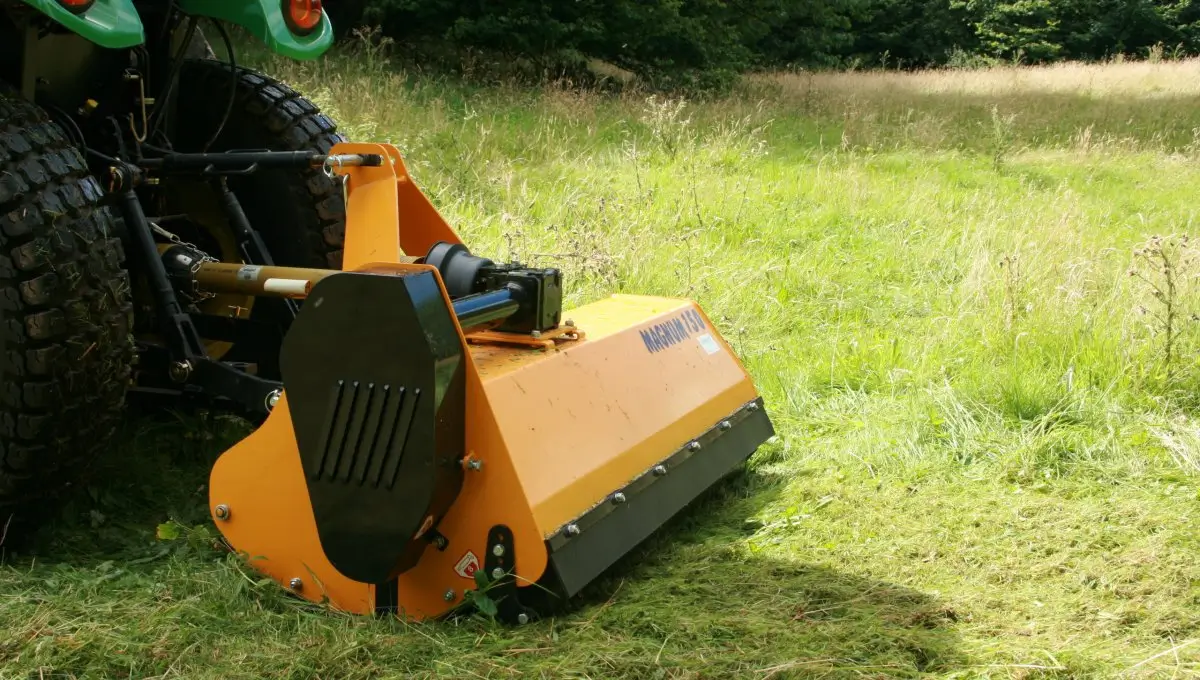

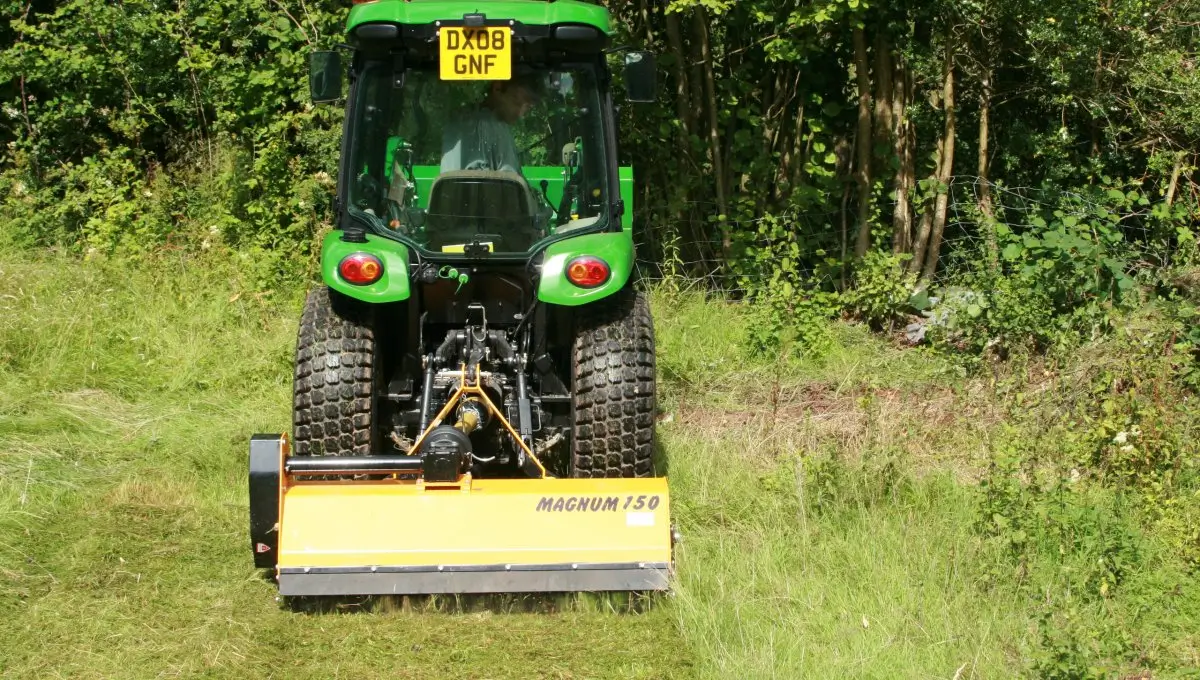

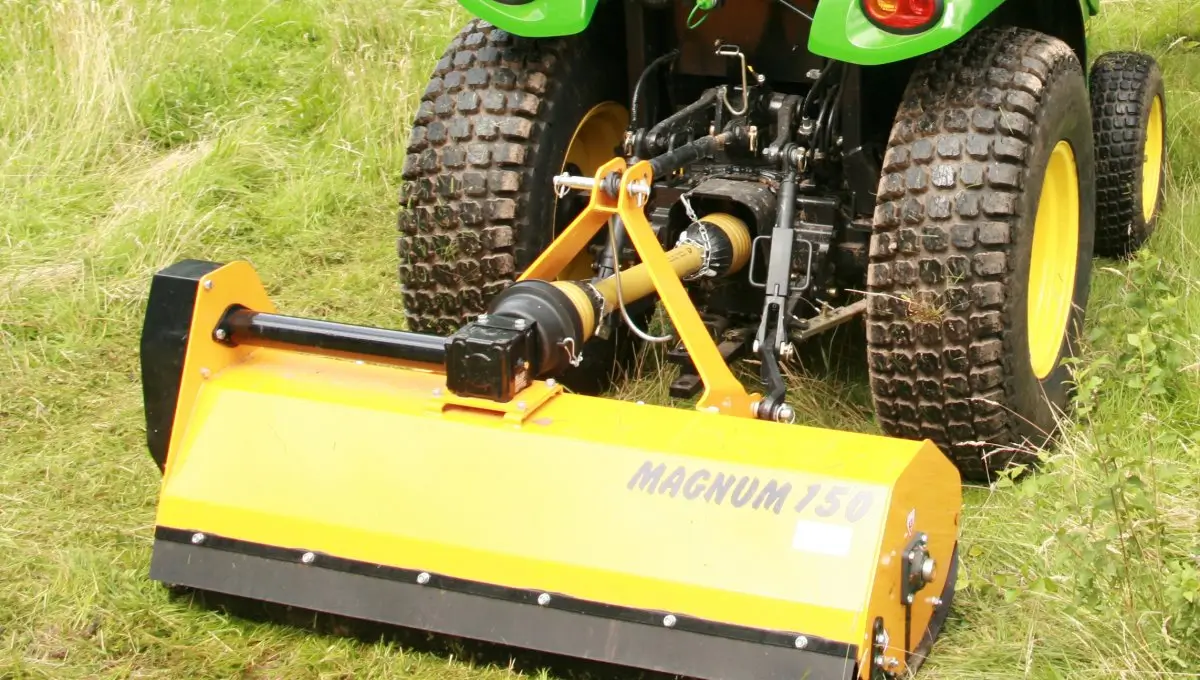

McConnel - Magnum
| Model | Magnum 130 | Magnum 150 |
|---|---|---|
| Working Width | 1.3m (4’3″) | 1.5m (4’11”) |
| HP Requirement | 35 | 40 |
| Weight | 213kg | 237kg |
| Attachment | 3-point linkage | 3-point linkage |
| Cutting Height | 16mm – 56mm | 16mm – 56mm |
| Cutting Capacity | 30mm | 30mm |
| Overall Width | 1.4m | 1.6m |
| PTO Speed | 540rpm | 540rpm |
| Protection | Slip Clutch | Slip Clutch |
| Number of Flails | 18 | 20 |
| Manual Offset | 154mm | 154mm |
| Number of Rotors | 1 | 1 |
| Roller Diameter | 140 | 140 |
